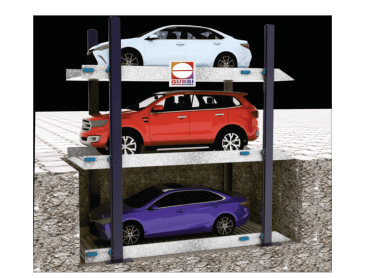

1 PIT - Three Level Simple Stacker Parking System (G-1+1)

It is an effective three-level stacking system with a pit design, offering smooth and convenient parking solutions for industrial, commercial, and residential environments.

DEPENDENT SYSYTEM : Based on the method of operation for lifting, it can be classified into two types: Electro-Mechanical and Hydraulic.

Struggling to find a parking spot? Our G-1+1, a three-level simple stacker featuring one pit level, is the perfect solution for parking needs in residential, commercial, and industrial environments. This innovative parking system optimizes space utilization and enhances convenience, all while being budget-friendly.

Residential Parking Solutions – Apartment Complexes & Gated Communities
Commercial Properties – Office Towers & Shopping Centers
Hotels & Hospitality – Intelligent Valet Parking Solutions
Industrial Facilities – Management of Parking for Factories and Warehouses
Public Parking Facilities – Optimization of Municipal and Urban Parking

Available Length (AL) Car Length (CL) -100mm

KEY FEATURES

User-friendly button operation for simplicity and convenience.
EV charging facilities available upon request.
Compact geared motor mounted on the pole for the mechanical stacker.
Hydraulic stacker operated by a power pack with a telescopic cylinder.
Safety features include mechanical locking, a non-return valve for the cylinder, and a pressure release valve in the power pack. Vehicle presence sensor is optional.
Maximizes space efficiency, tripling capacity in the same area.
Simple design reduces costs.
Equipped with a limit switch for upper car movement.
Very low maintenance requirements, making servicing easy.
Flexible configurations allow for convenient installation and dismantling.
Platform includes front wheel stoppers for accurate vehicle positioning.
Motors and controls feature IP55 protection.
Powder-coated structure with a galvanized iron deck sheet.

Call Now

09420333058

Get a Free Quote Today!

Three Level Hydraulic Stacker with One PIT Level (G-1+1)

Car Type Table

Total Height 'H'	GF 'Y'	1F 'Z'	Car Type
3250	1500	1500	SEDAN + SEDAN
3300	1550	1550	SEDAN + SEDAN
3400	1650	1550	HATCHBACK + SEDAN
3500	1750	1550	TALLBOY + SEDAN
	1650	1650	HATCHBACK + HATCHBACK
3600	1850	1550	TALLBOY + SEDAN
	1750	1650	TALLBOY + HATCHBACK
3700	1950	1550	SUV + SEDAN
	1850	1650	TALLBOY + HATCHBACK
	1750	1750	TALLBOY + TALLBOY
3800	2050	1550	SUV + SEDAN
	1950	1650	SUV + HATCHBACK
	1850	1750	TALLBOY + TALLBOY
3900	2050	1650	SUV + HATCHBACK
	1950	1750	SUV + TALLBOY
4000	2050	1750	SUV + TALLBOY
	1950	1850	SUV + TALLBOY
4100	2050	1850	SUV + TALLBOY
	1950	1950	SUV + SUV
4200	2050	1950	SUV + SUV
4300	2050	2050	SUV + SUV

Width Table

Avail. Width 'AW'	Pallet Width 'PW'	Car Width 'CW'
2400	2000	1700
2500	2100	1800
2600	2200	1900
2700	2300	2000

Car Type and Height Table

Car Type	Height (mm)
SEDAN CARS	1500-1600
HATCHBACK CARS	1601-1700
TALLBOY CARS	1701-1850
SUV CARS	1851-2000

Legend Table

Symbol	Meaning
H	HEIGHT
X	CAR HEIGHT
Y	CAR HEIGHT
Z	CAR HEIGHT
PH	PIT HEIGHT
PW	PALLET WIDTH
AW	AVAIL. WIDTH
AL	AVAIL. LENGTH
CW	CAR WIDTH
CL	CAR LENGTH
KG	KILOGRAM
GF	GROUND FLOOR
1F	FIRST FLOOR

Stack Parking Car Height Chart

PIT HT. 'PH'	Car HT. 'X'	Car Type
2000	1500	SEDAN
2050	1550	SEDAN
2100	1600	SEDAN
2150	1650	HATCHBACK
2200	1700	HATCHBACK
2250	1750	TALLBOY
2300	1800	TALLBOY
2350	1850	TALLBOY
2400	1900	SUV
2450	1950	SUV
2500	2000	SUV

Technical Specifications of Stack Parking System

Specification	Details
SPEED	2 Meters / Minute (each stack)
CAPACITY	2000 Kgs (2500 Kgs Optional)
OPERATION	Key with Push button operation.
POWER SUPPLY	415 V, 3 phase, 50 Hz

1 PIT - Three Level Simple Stacker Parking System (G-1+1)
