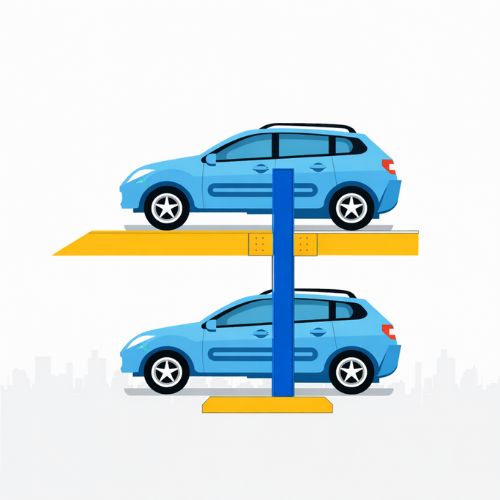

G +1 Hydraulic Car Parking System
The G +1 Hydraulic Car Parking System is a space-efficient, vertically stacked parking solution designed to double the vehicle capacity within the area of a single parking bay. Ideal for residential complexes, commercial buildings, car dealerships, and service centers, this system offers a dependable and low-maintenance alternative to traditional parking expansions.
Technical Specification:
| Sr. No | Description | Technical Specification Size / Type | Make |
|---|---|---|---|
| 1 | Model Type | Car STACK Parking | |
| 2 | Capacity | 2.5 Ton | |
| 3 | Machine/Lifting Mechanism | LEAP Chain – 6 x 6 Lacing | Diamond / Renold |
| 4 | Parking Slot/ Car Per Unit | 2 | |
| 5 | Clear Platform Size | 4000 L X 2100/2200/2300 width | M.S |
| 6 | Platform | Pre – Galvanised Sheet | |
| 7 | I Beam | M.S sheet 170 x 75 mm | TATA / JINDAL / SAIL |
| 8 | Lifting Time | ||
| 9 | Operation | ||
| 10 | Control Panel | 4 in 1 – 24 VDC | |
| 11 | Wiring | PVC CONDUIT PIPE WITH 0.5MM WIRE | |
| 12 | Side Arm | M S SHEET – 210 x 4000 mm | TATA / JINDAL |
| 13 | Deck Plate | Pre – Galvanised Sheet | JINDAL / EASER / Tata |
| 14 | Power Pack | Submersible Motor | M M Brothers |
| 15 | Safety Factor | ELECTRO MECHNIC SAFETY LATCH | |
| 16 | Hydraulic Oil | Enclo 68 – 10 ltr – Per | H P / Castrol / ACES |
| 17 | Hydraulic Safety | 24 VDC NON RETURNABLE VALVE | |
| 18 | Hydraulic Cylinder | 1250 X 2050 STROKE | M M Brothers |
| 19 | Structure | M.S SHEET | |
| 20 | Valve | 24V DC | ASM HYDRAULICS |
| 21 | Wiring (Harness) | Polycab / R R Cable | |
| 22 | Power Supply |
