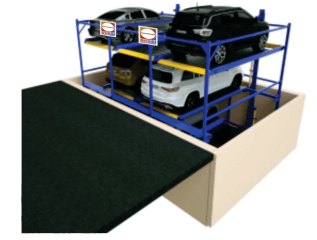

Hydraulic PIT Puzzle Parking System
Searching for a creative parking option to make the most of available space? The ideal solution is the EM Puzzle Car Parking System! This automatic and independent electromechanical system, which was created for metropolitan locations with limited space, allows for effective multi-level parking, minimizing manual labor and optimizing vehicle space.
- Residential Parking Solutions – Apartments and Gated Communities
- Commercial Complexes – Office Buildings and Shopping Malls
- Hotels & Hospitality – Intelligent Valet Parking Solutions
- Industrial Facilities – Parking Management for Factories and Warehouses
- Public Parking Lots – Optimization of Municipal and Urban Parking
Car Length (CL) OR Available Length (AL)-500mm
KEY FEATURES
- Space Optimization: To fit more automobiles in less space, layered grid-based parking is used.
- Customized Configurations: Pallet width (PW) and car width (CW) can be adjusted for varying vehicle sizes in two to four grids.
- Fast & Efficient: Operates at a speed of 2 meters per minute per stack, ensuring quick and smooth access to vehicles.
- Advanced Automation: Outfitted with touch-screen HMI controls for effortless monitoring and operation.
- Ground and first-floor heights (GF & 1F) can be changed to suit a variety of car models, including sedans, hatchbacks, tallboys, and SUVs.
- Smart Power Supply: For optimal performance, it runs at 415V, 3-phase, 50Hz.
- Customizable Dimensions: Depending on site space availability, pallet and vehicle widths can be changed.
- Dependable and secure: designed with safe lifting systems to guard against vehicle damage and guarantee user security.

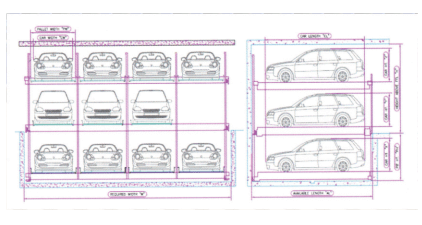

HYDRAULIC 3L 1 IN PUZZlE SYSTEM (G-1+1)
Legend Table
| Symbol | Definition |
|---|---|
| "H” | HEIGHT |
| "X” | CAR HEIGHT |
| "Y” | CAR HEIGHT |
| "Z” | CAR HEIGHT |
| "W” | REQ. WIDTH |
| "GF” | GROUND FLOOR |
| "1F” | FIRST FLOOR |
| "PH” | PALLET HEIGHT |
| "PW” | PALLET WIDTH |
| "CW” | CAR WIDTH |
| "CL” | CAR LENGTH |
