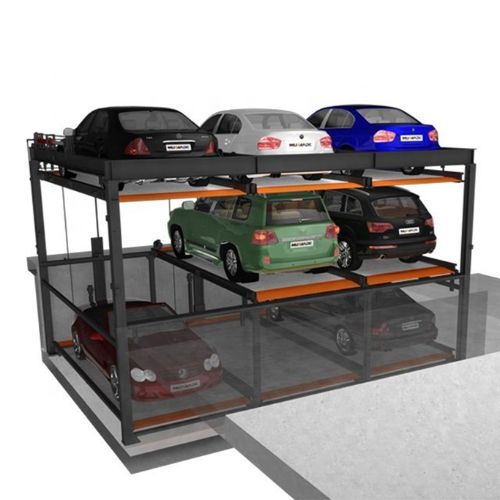

G-1 + 1 Puzzle Parking System – Technical Points
• System Type: Electro-hydraulic / Electro-mechanical Puzzle Parking
• Configuration: G-1 (Pit) + Ground + 1 Level
• Cars per Module: 3 Nos
• Movement Type: Vertical lifting & horizontal sliding
• Car Direction: Straight entry & exit (no turning required)
Mechanical & Structural
• Structure: Heavy-duty MS fabricated frame
• Columns & Beams: ISMB / ISMC sections
• Platform: MS chequered / deck plate with anti-skid surface
• Surface Finish: Shot blasting + epoxy / PU / powder coating
Drive & Control
• Lifting Mechanism: Hydraulic cylinder/wire rope hoist
• Motor: Electric motor with gearbox
• Control Panel: PLC/relay-based
• Operation: Key switch/push button
• Power Supply: 415V, 3-phase, 50 Hz
Safety Features
• Electro-mechanical safety locks at each level
• Limit switches for precise positioning
• Anti-fall & overload protection
• Emergency stop button
• Power failure safety locking system
Vehicle Parameters
• Max Car Weight: 2000–2500 kg
• Max Car Width: ~1900 mm
• Suitable Vehicles: Hatchback, Sedan, SUV
